Frame Erase

This mode enables you to erase shadows and lines that appear when copying various types of originals. There are three types of the Frame Erase mode: Original Frame Erase, Book Frame Erase, and Binding Erase.

IMPORTANT
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."

Original Frame Erase

This mode erases the dark borders and frame lines that appear around the copy if the original is smaller than the selected paper size. You can also use this mode to create a blank border around the edge of the copy.

If you copy A5 original onto A4 paper:

Erase Original Frame Is Selected

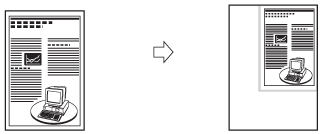

Erase Original Frame Is Not Selected

Place your originals → press [Options] → [Erase Frame].

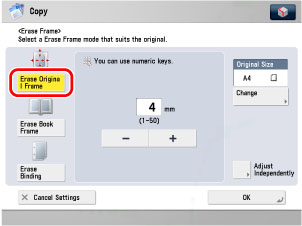

Press [Erase Original Frame].

Press [-] or [+] to set the frame erase width.

If you want to set the same width for all four borders:

Press [-] or [+] to set the width of frame erase. You can also use the numeric keys to enter values.

If you want to set the top, left, right, and bottom widths independently:

Press [Adjust Independently].

Select the desired frame erase borders → press [-] or [+] to set their respective frame erase widths → press [OK].

To return to the screen for setting the same amount of space for all four borders, press [Uniform Width].

Press [Change] → select the size → press [OK] → [OK].

IMPORTANT
You can set the Erase Original Frame mode only for the original paper sizes shown on the touch panel display.

NOTE
To select an inch paper size, press [Inch-Size].

Book Frame Erase

This mode erases the dark border, as well as centre and contour lines that appear if you are copying facing pages in a book or bound original onto a single sheet of paper.

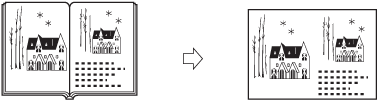

Erase Book Frame Is Selected

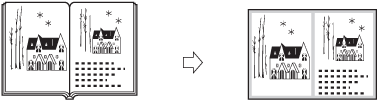

Erase Book Frame Is Not Selected

Place your original on the platen glass → press [Options] → [Erase Frame].

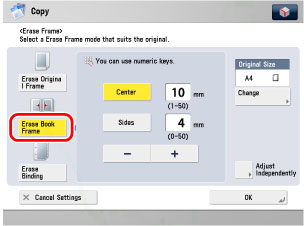

Press [Erase Book Frame].

Specify the frame erase widths.

If you want to set the same width for all four borders:

Press [Center] and [Sides] → press [-] or [+] to set their respective frame erase widths.

If you want to set the top, left, centre, right, and bottom widths independently:

Press [Adjust Independently].

Select the desired frame erase borders → press [-] or [+] to set their respective frame erase widths.

To return to the screen for setting the same width for all four borders, press [Uniform Width].

Press [Change] → select the size → press [OK] → [OK].

IMPORTANT
You can set the Erase Book Frame mode only for the original paper sizes shown on the touch panel display.

NOTE
To select an inch paper size, press [Inch-Size].

Binding Erase

This mode erases the shadows that appear on copies from binding holes on originals.

Erase Binding Is Selected

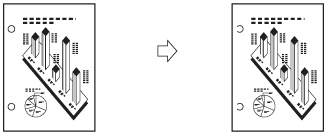

Erase Binding Is Not Selected

IMPORTANT
Make sure you place your original on the platen glass. Do not place originals with binding holes in the feeder, as this may damage the originals. When using the Erase Binding mode, the borders you do not select are also erased by 4 mm.

Place your originals on the platen glass → press [Options] → [Erase Frame].

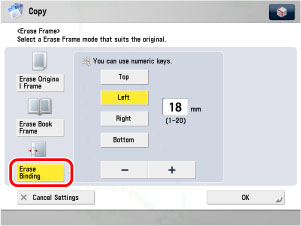

Press [Erase Binding].

The border is where the binding holes are located on the original, if you visualize the original as being face up.

Select the border where the binding holes are located → press [-] or [+] to set the frame erase width → press [OK].
