The machine offers you a variety of preset copy (zoom) ratios to reduce or enlarge standard size originals to another standard paper (record) size.
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
Place the originals horizontally in the following cases:
If you are enlarging A4 originals to A3
If you are enlarging A5 originals to A3 (when the original is placed on the
platen glass) If you are reducing A3 originals to A4 with Auto Orientation in Function
Settings (from the Settings/Registration screen) set to 'Off', load A4R paper in a paper drawer or the multi-purpose tray. |
|
NOTE
|
|
Placing an original horizontally means setting the original with the longer side sideways. (See "Orientation.")
To set the copy (zoom) ratio to 100%, press [1:1(100%)].
|
The available preset copy (zoom) ratios for reducing originals are:
11" × 15" → A4 (73%)
A3 → A4 (64%)
A3 → A5 (50%)
Minimum (25%)
The available preset copy (zoom) ratios for enlarging originals are:
Maximum* (400%)
A5 → A3 (200%)
A4 → A3 (129%)
* Only when placed on the platen glass
1.

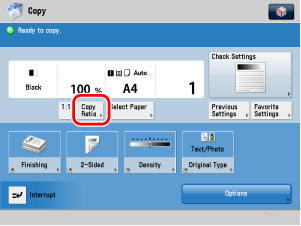

Place your originals → press [Copy Ratio].
|
IMPORTANT
|
|
The Paper Select setting must be set to 'Auto'.
|
2.

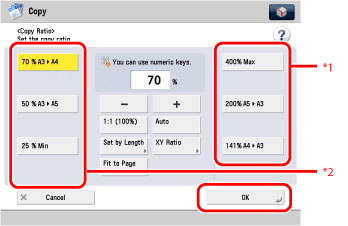

Select the desired copy ratio → press [OK].
*1 Enlargement
*2 Reduction
3.
Press
.
.
