You can reserve print jobs even while the machine is printing or waiting to process a job.
|
NOTE
|
|
You can specify up to 32 files to be reserved, including the current job.
You can set different modes and drawers, including the multi-purpose tray for each reserved job.
As an example, the procedure to select and print a file stored in a mail box is explained in this section.
|
Reserved printing can be specified in the following cases:
You can specify print settings while the machine is in the waiting state, such as when the power is just turned ON, or after a paper jam is cleared. Printing automatically begins when the machine is ready.
|
NOTE
|
|
You can specify reserved printing while the machine is in the waiting state in the following cases:
Between the time that the machine is turned ON and when it is ready to print
After a paper jam is cleared
After a cover on the main unit or an optional unit, such as a finisher, is opened and closed
|
You can specify print settings for a new job while the machine is printing. Printing of the new job automatically begins when the current job is complete.
1.
Press [Close] on the pop-up screen that appears while the machine is printing.
If the screen displayed on the touch panel display is from a function other than the Mail Box function, press [OK] → [Mail Box] to display the Mail Box Selection screen.
2.

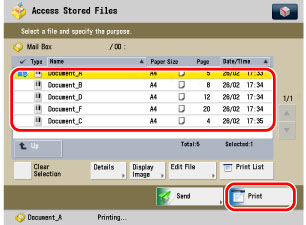

Select the desired Mail Box → select the file that you want to print → press [Print].
3.
Print the selected file.
Press [Start Printing].
Press [Change Print Settings] → specify the desired print settings → press [Start Printing].
If you select 33 or more files to print at one time, the screen below is displayed. To print out the first 32 files that you selected, press [Yes]. Press [No], if you want to stop printing altogether.
If the machine can no longer accept any more reserved jobs, a message indicating that printing could not be performed is displayed. Press [OK] → try reserving the job again after the current job is complete.
|
NOTE
|
|
To make a sample print, press [Print Sample]. (See "Printing a Sample.")
If you want to automatically delete a file after it is printed, press [Delete File After Printing].
|
Reserved printing using the multi-purpose tray is possible only if paper is being fed from the multi-purpose tray for the current job.
The following example assumes that A3 plain paper is being fed from the multi-purpose tray for the current job, and that you are selecting A4 plain paper to be fed from the multi-purpose tray for a reserved job.
|
IMPORTANT
|
|
When printing on special types of paper, such as heavy paper or transparencies, be sure to correctly set the paper type, especially if you are using heavy paper. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.
|
|
NOTE
|
|
If Register Multi-Purpose Tray Defaults in Paper Settings in Preferences (from the Settings/Registration screen) is set to 'On', reserved printing can be performed only for the registered paper size and type. (See "Registering Multi-Purpose Tray Defaults.")
For information on paper types, see "Available Paper Stock."
|
1.
Press [Close] on the pop-up screen that appears while the machine is printing.
Normally, when reserved printing is not being set, the Multi-Purpose Tray Settings screen is automatically displayed when paper is loaded into the multi-purpose tray.
2.

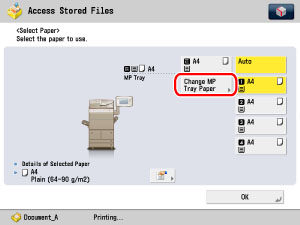

Select the desired Mail Box → select the file that you want to print → press [Print] → [Change Print Settings] → [Select Paper] → [Change MP Tray Paper].
3.
Select the desired paper size.
|
NOTE
|
|
If you select [Free Size], [Custom Size], [Transparency], [Tracing], or [Labels], you cannot specify any Finishing modes (Collate, Group, or Staple).
If Register Multi-Purpose Tray Defaults in Device Use Settings (from the Settings/Registration screen) is set to 'On', and the paper size/type have been stored, the selected paper size/type are displayed on the screen. (See "Registering Multi-Purpose Tray Defaults.")
|
Select the desired paper size → press [Next].
|
NOTE
|
|
To select an inch paper size, press [Inch-size].
|
Select the desired paper type → press [OK].
If the desired paper type is not displayed, press [Detailed Settings] → select the paper type from the list → press [OK].
If you are printing on the back side of a previously printed sheet, press [2nd Side of 2-Sided Page].
|
NOTE
|
|
[Transparency] can be selected only if [A4] or [A4R] is selected as the paper size.
You can register paper types that are not displayed on the detailed settings list in <Change Multi-Purpose Tray Paper: Paper Type>. For more information on storing the paper type, see "Registering/Editing Custom Paper Types."
|
Press [Free Size] → [Next].
Select the desired paper type → press [OK].
If the desired paper type is not displayed, press [Detailed Settings] → select the paper type from the list → press [OK].
If you are printing on the backside of a previously printed sheet, press [2nd Side of 2-Sided Page].
Press [Custom Size].
Press [X] (horizontal axis) → enter a value.
Press [Y] (vertical axis) → enter a value.
Press [OK].
You can also press a size key in which a paper size is registered ([S1] to [S5]), instead of entering a value.
|
NOTE
|
|
To recall a paper size from a size key ([S1] to [S5]), it is necessary to register a paper size in that key beforehand. For more information on registering a paper size, see "Registering and Editing Custom Paper Sizes."
|
Press [Next].
Select the desired paper type → press [OK].
If the desired paper type is not displayed, press [Detailed Settings] → select the paper type from the list → press [OK].
If you are printing on the back side of a previously printed sheet, press [2nd Side of 2-Sided Page].

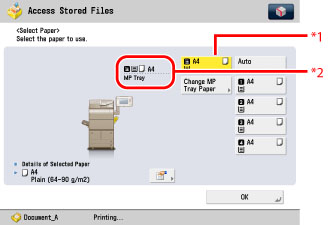

The paper size/type currently loaded and the paper size/type reserved to be loaded are displayed, as shown on the screen below.
*1 The last paper size/type specified for the reserved print job
*2 The paper size/type currently loaded
|
NOTE
|
|
If there is more than one reserved job waiting to print, only the last paper size/type specified for the reserved print job is shown on the Paper Select screen.
|
4.
Press [OK].
This completes the settings for reserving a print job using the multi-purpose tray. The subsequent steps show you how to start printing and load paper into the multi-purpose tray.
5.
Press [Start Printing].
6.
When it is time for the reserved print job to be printed, load the specified paper into the multi-purpose tray.
|
NOTE
|
|
The specified paper size/type is displayed on the screen when it is time for the reserved print job to be printed.
Make sure to load the same paper size and type selected in step 3 into the multi-purpose tray. Printing does not start if paper of a different size or type is loaded.
|
7.
Select the desired paper size.
If a message screen indicating that the width of the slide guides does not match the selected paper size is displayed, adjust the width of the slide guides → specify the paper size → press [OK].
If a message screen indicating that the width of the slide guides does not match the paper size registered in Multi-Purpose Tray Defaults is displayed, set Register Multi-Purpose Tray Defaults to 'Off' in Preferences (from the Settings/Registration screen). (See "Registering Multi-Purpose Tray Defaults.")
|
IMPORTANT
|
|
Set the paper size to the same size as the paper loaded in the multi-purpose tray.
|
Select the desired paper size → press [Next].
|
NOTE
|
|
To select an inch paper size, press [Inch-size].
|
Select the paper type → press [OK].
If the desired paper type is not displayed, press [Detailed Settings] → select the paper type from the list → press [OK].
If you are printing on the back side of a previously printed sheet, press [2nd Side of 2-Sided Page].
Press [Free Size] → [Next].
Select the desired paper type → press [OK].
If the desired paper type is not displayed, press [Detailed Settings] → select the paper type from the list → press [OK].
If you are printing on the backside of a previously printed sheet, press [2nd Side of 2-Sided Page].
Press [Custom Size].
Press [X] (horizontal axis) → enter a value.
Press [Y] (vertical axis) → enter a value.
Press [OK].
You can also press a size key in which a paper size is registered ([S1] to [S5]), instead of entering a value.
|
NOTE
|
|
To recall a paper size from a size key ([S1] to [S5]), it is necessary to register a paper size in that key beforehand. For more information on registering a paper size, see "Registering and Editing Custom Paper Sizes."
|
Press [Next].
Select the paper type → press [OK].
If the desired paper type is not displayed, press [Detailed Settings] → select the paper type from the list → press [OK].
If you are printing on the back side of a previously printed sheet, press [2nd Side of 2-Sided Page].
