On, Off*
|
This setting enables you to print documents with a five digit serial number in the background on each copy.
Copy numbers are printed in the following methods:
*: Copy Number
When printing three copies of a five page document:
|
First Copy
|
Second Copy
|
Thrid Copy
|
 |
 |
 |
|
IMPORTANT
|
|
If this setting is used in combination with [Printer Driver Secure Watermark] in Function Settings (from the Settings/Registration screen), this setting is invalid. For details on Printer Driver Secure Watermark, see "Forced Secure Watermark."
If the 'Finishing' settings are specified as [Rotate+Group], [Offset+Group], and [Staple+Group], then [Rotate+Collate], [Offset+Collate], and [Staple+Collate] are specified.
|
|
NOTE
|
|
If the copy number has fewer than five digits, the machine prints it as follows:
Example: If the copy number is 10
10→00010 Copy numbers are not printed on blank pages (pages with no data).
If this setting is used in combination with 'Margin' or 'Offset Short Edge/Offset Long Edge', part of the copy number may be cut off.
This function is not available if 'Transparency Interleaving' is enabled.
If the number of printed copies exceeds '99999', it returns to '00001'.
|
|
5 Locations*, Top Left, Bottom Left, Top Right, Bottom Right, and Full Surface
|
This setting enables you to specify the position of the copy numbers to be printed. You can select to print numbers in all five positions, in each corner, or over the entire page.
|
5 Locations
|
Top Left
|
Bottom Left
|
Top Right
|
Bottom Right
|
Full Surface
|
 |
 |
 |
 |
 |
 |
|
NOTE
|
|
This function is only available if 'Copy Set Numbering' is set to [On].
|
|
1 to 9999; 1*
|
This setting enables you to specify the copy number to start numbering. The default is '1' (printed as 00001), but you can specify up to '9999' (printed as 09999).
|
NOTE
|
|
This function is only available if 'Copy Set Numbering' is set to [On].
|
|
Small(12 point), Medium(24 point), Large(36 point)*
|
This setting enables you to select the size of copy number from 'Small', 'Medium', and 'Large' ('12.0 pt.', '24.0 pt.', and '36.0 pt.').
|
NOTE
|
|
This function is only available if 'Copy Set Numbering' is set to [On].
|
|
1 to 5; 3*
|
This setting enables you to adjust the number density and has 5 levels you can adjust, with level '3' (middle level) being the default setting. Selecting '1' makes the number lighter, and selecting '5' makes it darker.
|
NOTE
|
|
This function is only available if 'Copy Set Numbering' is set to [On].
|
|
-8 to +8 mm; 0* mm
|

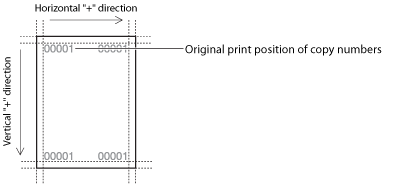

The position of the copy numbers specified with 'Print Position' can be finely adjusted by offsetting them in the horizontal or vertical directions. The adjustment can be made in increments of 1 mm from -8 mm through +8 mm.
You can increase or decrease the setting value to adjust the print position of the copy numbers, as described below.
Number Position Vertical: Increasing the setting value moves the print position in the downward direction of the paper. Decreasing the setting value moves the print position in the upward direction of the paper.
Number Position Horizontal: Increasing the setting value moves the print position to the right. Decreasing the setting value moves the print position to the left.
|
IMPORTANT
|
|
Please note that if the print position is adjusted to place the digits of the copy numbers outside the printable area, the portion outside the printable area is not printed.
|
|
NOTE
|
|
This setting is only effective for the print position of copy numbers. When adjusting print position (other than the copy numbers), perform the setting with 'Offset Short Edge/Offset Long Edge'. (See "Offset Short Edge/Offset Long Edge (Front)" and "Offset Short Edge/Offset Long Edge (Back).")
This function is only available if 'Copy Set Numbering' is set to [On].
|
