Inserting Sheets

This mode enables you to set the machine to automatically add sheet insertions, chapter pages, or tab paper using a different type of paper from that used for the main document. In addition, you can decide whether the sheet insertions and tab paper are printed on as well. Chapter pages are always printed on.

IMPORTANT
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions (Print Function for the Files Stored in a Mail Box)." This mode can be used only for printing a file stored in a mail box. You cannot set the Sheet Insertion mode when you select multiple documents. In this case, set the Job Separator mode. If you select the Staple mode when Staple Finisher or Booklet Finisher is attached, you cannot staple more than 30 sheets of A3 or A4R, or 50sheets of A4 paper, including sheet insertions. When printing on special types of paper, such as heavy paper or transparencies, be sure to correctly set the paper type, especially if you are using heavy paper. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.

IMPORTANT

For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions (Print Function for the Files Stored in a Mail Box)."

This mode can be used only for printing a file stored in a mail box.

You cannot set the Sheet Insertion mode when you select multiple documents. In this case, set the Job Separator mode.

If you select the Staple mode when Staple Finisher or Booklet Finisher is attached, you cannot staple more than 30 sheets of A3 or A4R, or 50sheets of A4 paper, including sheet insertions.

When printing on special types of paper, such as heavy paper or transparencies, be sure to correctly set the paper type, especially if you are using heavy paper. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.

NOTE
If you are printing on the sheet insertions, these sheets are included in the count of the total number of prints made. If these sheets are left blank, however, the machine's counter does not count them as prints. If you are adding chapter pages and tab paper, these sheets are included in the count of the total number of prints made. If you want to set both Add Cover and Insert Sheets, select the same paper size.

NOTE

If you are printing on the sheet insertions, these sheets are included in the count of the total number of prints made. If these sheets are left blank, however, the machine's counter does not count them as prints.

If you are adding chapter pages and tab paper, these sheets are included in the count of the total number of prints made.

If you want to set both Add Cover and Insert Sheets, select the same paper size.

Sheet Insertion/Chapter Page

This setting inserts a sheet of paper between prints. The Sheet Insertion mode is useful when you want to use a blank sheet to help sort out the prints. You may also print on the sheet insertions. Since the chapter page is always printed on one side, the Chapter Page mode is useful when you want to organize the prints by chapter.

*1 Printed Sheet Insertion

*2 Printed Chapter Page

Tab Paper

This setting inserts sheets of tab paper into the prints. This is convenient when sorting the body of documents etc.

To print on the tab paper, set the shift width of the image to be printed on the tabs.

* Area Shifted Out

NOTE
Tab paper is always printed on. If you do not want to print on the tab paper, insert blank sheets of paper in each place where you want the tab paper to go. When printing on tab paper, check that the position of the tabs is correct. If you are feeding tab paper from a paper drawer, you must register the paper type in the paper source as tab paper beforehand. (See "Registering the Paper Type for the Paper Source.") For instructions on loading tab paper into the drawer, Document Insertion/Folding Unit, or Document Insertion Unit, see "Maintenance." If [Unfinished Tab Paper Forced Output] in Function Settings (from the Settings/Registration screen) is set to 'On', the extra amount of tab paper sheets that were not required for the job are forced out of the machine. Example: If the number of tabs is set to 5 and the machine estimates that seven sheets of tab paper are needed for the print job, you must prepare two sets of tab paper each containing five tabs (10 total). Therefore, if the machine only uses seven tab paper sheets, three tab paper sheets will remain. Areas of images shifted outside the tab paper cannot be printed on the paper, and may cause the following prints to have black streaks or appear dirty. Example: Areas of images may shift outside the tab paper. * Area Shifted Out

NOTE

Tab paper is always printed on. If you do not want to print on the tab paper, insert blank sheets of paper in each place where you want the tab paper to go.

When printing on tab paper, check that the position of the tabs is correct.

If you are feeding tab paper from a paper drawer, you must register the paper type in the paper source as tab paper beforehand. (See "Registering the Paper Type for the Paper Source.")

For instructions on loading tab paper into the drawer, Document Insertion/Folding Unit, or Document Insertion Unit, see "Maintenance."

If [Unfinished Tab Paper Forced Output] in Function Settings (from the Settings/Registration screen) is set to 'On', the extra amount of tab paper sheets that were not required for the job are forced out of the machine.
Example: If the number of tabs is set to 5 and the machine estimates that seven sheets of tab paper are needed for the print job, you must prepare two sets of tab paper each containing five tabs (10 total). Therefore, if the machine only uses seven tab paper sheets, three tab paper sheets will remain.

Areas of images shifted outside the tab paper cannot be printed on the paper, and may cause the following prints to have black streaks or appear dirty.
Example: Areas of images may shift outside the tab paper.

* Area Shifted Out

Select the desired Mail Box.

Select the file that you want to print → press [Print] → [Change Print Settings] → [Options].

Press [Insert Sheets].

Select the type of paper to insert → press [Add].

If you selected [Tab], set the print shift width (0 mm to 25 mm) using [-] or [+] → press [OK].

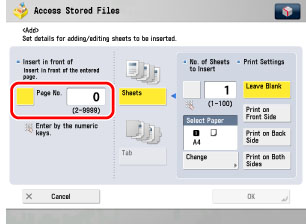

Enter the page number where you want to insert the paper using

(numeric keys).

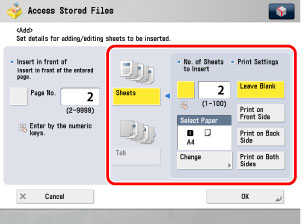

Specify the detailed insertion settings.

If you selected [Sheets], set the number of sheets to insert, and the side to print on → press [Change] → select the paper source that contains the paper you want to insert.
If you select [Tab], press [Change] → select the paper source that contains the paper you want to insert.

If you are feeding the paper from the Document Insertion/Folding Unit or Document Insertion Unit, select the paper size after loading the paper size into the Document Insertion/Folding Unit or Document Insertion Unit.

Select [Sheet Inserter] to feed cover page from the Document Insertion/Folding Unit or Document Insertion Unit. If you want to select the sheet inserter when a paper size/type is already set for the current or reserved job, you can press [Sheet Insert. Setting].

If you select [Tab], select [Tab] on the Select Paper screen → press [Number of Tabs]. Specify the number of tabs → press [OK].

IMPORTANT
If you select [Tab], only A4 paper can be used. You cannot insert a sheet insertion or chapter page on the first page. Set their positions starting from the second page. However, you can insert tab paper in front of the first page. If [Print on Both Sides] is selected for the front cover in the [Add Cover] mode and tab paper is set to insert in front of the first page, the front cover is output first, and then the tab paper is output. The front cover outputs as a blank paper and prints are made starting from the tab paper. If you select [Leave Blank] for the sheet insertion, you can set the same page for tab paper. In this case, the paper for the sheet insertion is output first, and then the tab paper is output.

IMPORTANT

If you select [Tab], only A4 paper can be used.

You cannot insert a sheet insertion or chapter page on the first page. Set their positions starting from the second page. However, you can insert tab paper in front of the first page.

If [Print on Both Sides] is selected for the front cover in the [Add Cover] mode and tab paper is set to insert in front of the first page, the front cover is output first, and then the tab paper is output. The front cover outputs as a blank paper and prints are made starting from the tab paper.

If you select [Leave Blank] for the sheet insertion, you can set the same page for tab paper. In this case, the paper for the sheet insertion is output first, and then the tab paper is output.

NOTE
You can insert up to 100 sheet insertions (or chapter pages) and tab paper. If you are using paper that already has printing on it (e.g., company logo) as your sheet insertion, then you must select [Leave Blank]. Otherwise, the machine will print your original's first or last page on the preprinted paper.

Press [OK].

Repeat steps 4 to 7, as necessary.

NOTE

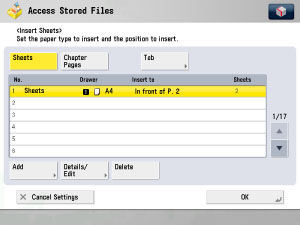

The settings are displayed in the order of insertion. You can press [Details/Edit] to check and edit the pages to insert sheet insertions, chapter pages, or tab paper. Make sure that the Number of Tabs shown on the touch panel display is the same as the number of tabs on the tab paper loaded in the paper source.
