You can designate the machine's output trays to be used for specific functions.
The output trays indicated by Tray A, B, and C vary according to the attached optional products.
|
Options Attached
|
Default Settings
|
Tray A/B/C
|
|
Staple Finisheror Booklet Finisher
|
Tray A: Receive, Other, Fax
Tray B: 1 Copy, 1 Access Stored Files, 1 Printer
Tray C: 2 Copy, 2 Access Stored Files, 2 Printer
|
 |
|
NOTE
|
|
This mode is available only if the Staple Finisher or Booklet Finisher is attached to the machine.
The same output tray can be designated for multiple functions.
The priority order of the output destinations is determined by the order of the selected output trays. The priority is displayed as "1," "2," and "3."
|
1.
Press
→ [Function Settings] → [Common] → [Paper Output Settings] → [Output Tray Settings].
→ [Function Settings] → [Common] → [Paper Output Settings] → [Output Tray Settings].2.

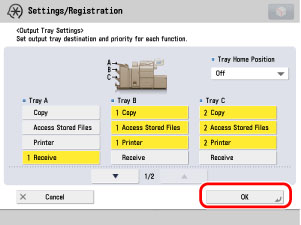

Set the output and priority settings for Trays A/B/C → press [OK].
[Other] is used for designating a tray for printing reports.
If the fax board is installed, [Fax] is displayed.
If the Super G3 2nd Line Fax Board is installed, you can set up to two fax lines (Fax Line 1 to 2).
If you want to use an output tray for only one function, select only that function.
|
IMPORTANT
|
|
If a certain tray reaches its stacking limit, the machine automatically uses another tray that is designated for the same function. However, it is recommended that you only designate one tray for fax/I-fax documents to prevent them from getting lost.
|
If you want to select the tray home position (when the Staple Finisher or Booklet Finisher is attached):
Press the Tray Home Position drop-down list → select the tray home position to be used while jobs are being processed.
|
Tray Home Position
|
|
|
[Tray B]:
|
Tray B moves closer to the output area.
|
|
[Tray C]:
|
Tray C moves closer to the output area.
|
|
[Off]:
|
The tray home position is not set. The output tray stops at the position it is in when printing finishes.
|
