IMPORTANT
|
|
The Staple mode can be set only if a finisher is attached.
When printing on special types of paper, such as heavy paper or transparencies, be sure to correctly set the paper type, especially if you are using heavy paper. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.
|
1.
Select the desired Mail Box.
2.

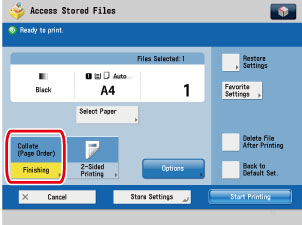

Select the file that you want to print → press [Print] → [Change Print Settings] → [Finishing].
3.
Press [Staple].
If you want to make hole punches, press [Hole Punch].
If you want to fold, press [Fold] → select the fold type → press [OK].
If you want select Face Up/Face Down, press [Face Up/Face Down].
Press [Next].
 |
 |
|
The Staple Finisher is attached.
|
The Staple Finisher/Booklet Finisher, External 2 Hole Puncher/External 2/4 Hole Puncher/External 4 Hole Puncher, and Document Insertion/Folding Unit/Document Insertion Unit are attached.
|

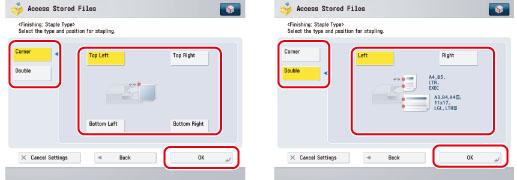

Select the stapling type ([Corner] or [Double]) → select the stapling position → press [OK].
Press [Next].
Select the stapling type ([Corner], [Double], or [Saddle Stitch]).

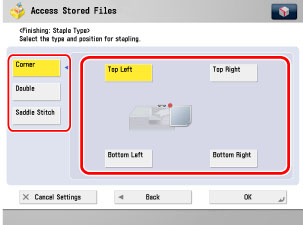

If you want to select [Corner] or [Double]:
Press [Corner] or [Double] → select the stapling position → press [OK].

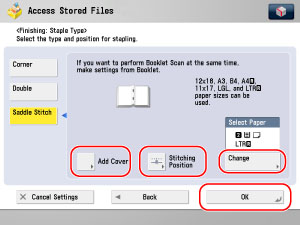

If you want to select [Saddle Stitch]:
Press [Saddle Stitch].
To change the position of the saddle stitch, press [Change Stitching Pos] → select the paper size → adjust the position → press [OK] → [Close].
If you selected the paper to use for the main document from [Change MP Tray Paper], select the paper size → press [Next] → select the paper type → press [OK].
If you want to add a cover, press [Add Cover].
Select whether to print on the cover → press [OK] → [Change] → select the paper source that contains the paper you want to use for the cover → press [OK].
If you are feeding cover page from the Document Insertion/Folding Unit or Document Insertion Unit, select [Leave Blank].
If you selected the paper to use for the cover from [Change MP Tray Paper], select the paper size and press [Next] → select the paper type and press [OK].
|
IMPORTANT
|
|
Make sure to use the same paper size for the cover and the main document.
If you are loading preprinted paper to use as the cover page into the document insertion unit, you must load the paper face up.
Only 52 to 220 g/m2 paper can be used for the main document.
Up to 256 g/m2 paper can be used for the cover paper.
|
|
NOTE
|
|
If you press
 , the detailed information of selected paper is displayed. |
4.
Press [Start Printing].
