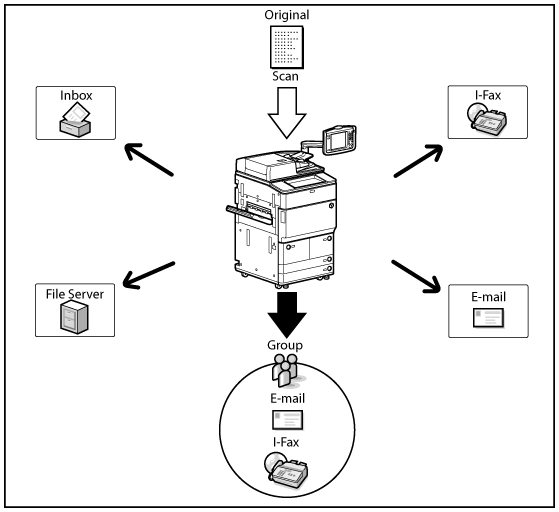

If you press [Scan and Send] on the Main Menu screen, the Scan and Send Basic Features screen appears. The Send function enables you to scan documents and send them to specified destinations via e-mail or I-fax, save them to a file server, or store them in a mail box to process them at a later date. You can also send documents to multiple destinations simultaneously using various sending methods, such as e-mail and I-fax.

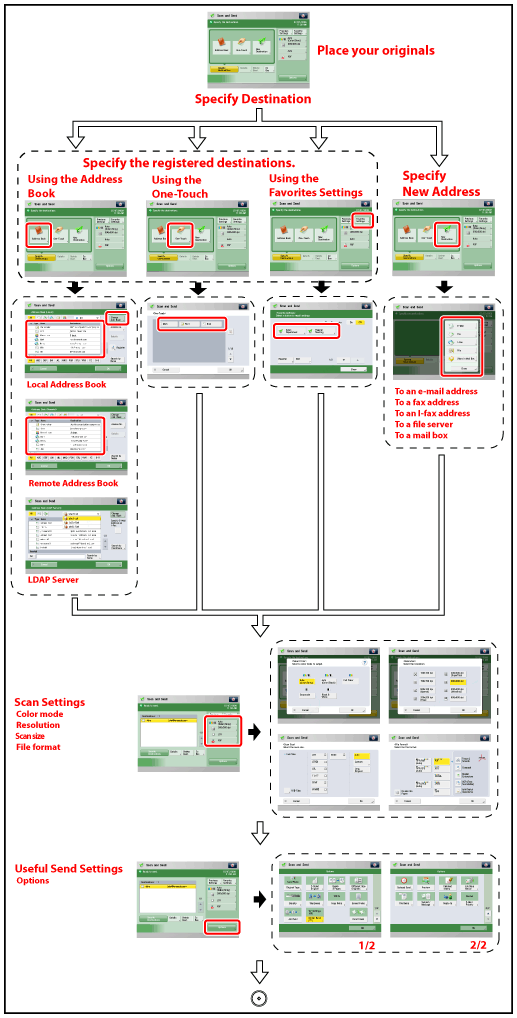

The flow of the sending is as follows.
|
IMPORTANT
|
|
Network settings must be specified to be able to send scanned documents to an e-mail address, an I-fax address, or a file server. (See "Common Communication Settings for E-Mail/I-Fax.")
|

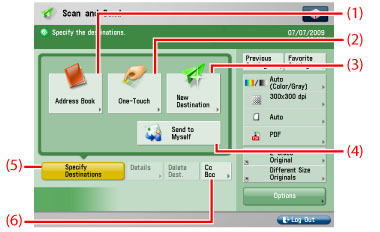

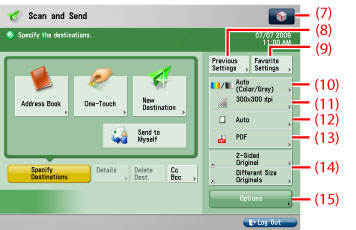

The screen below, which appears when [Scan and Send] on the Main Menu screen is selected, is called the Scan and Send Basic Features screen.
|
(1)
|
Address Book
Press to select a destination from the Address Book. |
|
(2)
|
One-Touch
Press to recall the destinations stored in a one-touch button. |
|
(3)
|
New Destination
Press to specify a destination not stored in the Address Book. |
|
(4)
|
Send to Myself
Press to specify your e-mail address as the destination. |
|
(5)
|
Specify Destinations
Press to select a sending method. |
|
(6)
|
Cc Bcc
Press to specify the e-mail address as a Cc or Bcc destination. |
|
(7)
|
 You can specify the following five settings.
Register Favorite Settings
Edit Favorite Settings
Register to Quick Menu
Change Default Settings
Register Options Shortcuts
|
|
(8)
|
Previous Settings
Press to recall previously set send jobs, including the destinations, scan settings, and send settings. |
|
(9)
|
Favorite Settings
Press to recall the destinations and settings stored in a favorite settings button. |
|
(10)
|
Select Color
Press to set the colour mode. |
|
(11)
|
Resolution
Press to set the resolution. |
|
(12)
|
Scan Size
Press to specify the size of the original. |
|
(13)
|
File Format
Press to select the file format of the document you are going to send (PDF, XPS, JPEG, and TIFF). |
|
(14)
|
Shortcuts to [Options]
Press to select a [Options] mode. [2-sided Original] and [Different Size Originals] are set as default. |
|
(15)
|
Options
Press to set useful send function such as sending different sized originals together or two-sided originals. |
|
(16)
|

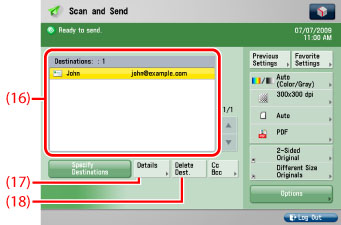

Destination List
Displays a list of destinations. |
|
(17)
|
Details
Press to check or change the destination information selected from the destination list. |
|
(18)
|
Delete Dest.
Press to delete the destination displayed in the destination list. |
|
NOTE
|
|
[Send to Myself] is displayed only if authentication by SSO-H Network Settings is set.
|
