This mode enables you to delete shadows and lines that appear when scanning various types of originals.
The following three Erase Frame modes are available.
|
IMPORTANT
|
|
Combinations of the three Erase Frame modes cannot be set. If you select one of these modes, the previously set mode is cancelled.
The Erase Frame mode cannot be used when sending a fax document in the Direct Sending or Manual Sending mode.
The Erase Original Frame mode and Erase Book Frame mode cannot be used with the Scan Size (Auto, Custom, and Long Original) or Different Size Originals mode.
You can set the Erase Original Frame mode and Erase Book Frame mode only for the original paper sizes shown on the touch panel display.
|
|
NOTE
|
|
To cancel this setting, press [Options] → [Erase Frame] → select the item → press [Cancel Settings].
To select an inch paper size, press [Inch-Size].
|
This mode deletes the dark borders and frame lines that appear around the scanned image if the original is smaller than the selected record size. You can also use this mode to create a blank border around the edge of the scanned image.
This mode deletes the dark borders, as well as centre and contour lines that appear if you are scanning facing pages in a book or bound original.
This mode deletes the shadows that appear on the scanned image from binding holes on originals.
1.

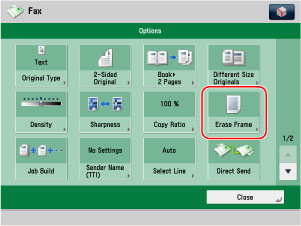

Press [Options] → [Erase Frame].
2.

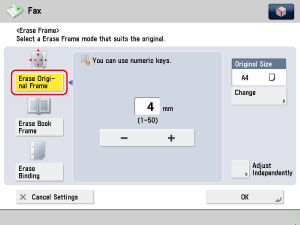

Press [Erase Original Frame].
3.

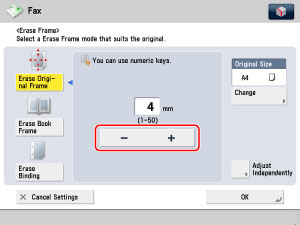

Press [-] or [+] to set the erase frame width.
Press [-] or [+] to set the erase frame width.
Press [Adjust Independently].

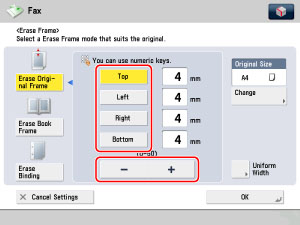

Select the desired erase frame borders → press [-] or [+] to set their respective erase frame widths.
To return to the screen for setting the same width for all four borders, press [Uniform Width].
4.
Press [Change] → select the original size → press [OK].
5.
Press [OK].
1.
Press [Options] → [Erase Frame].
2.

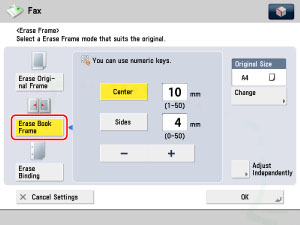

Press [Erase Book Frame].
3.
Press [-] or [+] to set the erase frame widths.

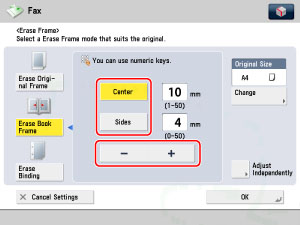

Press [Center] and [Sides] → press [-] or [+] to set their respective erase frame widths.
Press [Adjust Independently].

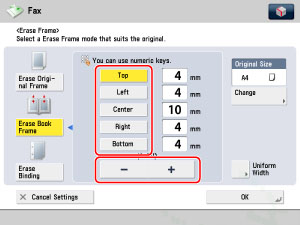

Select the desired erase frame borders → press [-] or [+] to set their respective erase frame widths.
To return to the screen for setting the same width for all four borders, press [Uniform Width].
4.
Press [Change] → select the size of the bound original when it is open → press [OK].
5.
Press [OK].
|
IMPORTANT
|
|
Do not place originals with binding holes into the feeder, as this may damage the originals.
The Erase Binding mode cannot be used with the Scan Size (Custom and Long Original) or Book
 2 Pages mode.If you are using the Erase Binding mode, the borders you do not select are also erased by 4 mm.
|
1.
Press [Options] → [Erase Frame].
2.
Press [Erase Binding].
The border is where the binding holes are located on the original, if you visualize the original as being face up.
3.
Press [-] or [+] to set the erase frame width → press [OK].
