Check the location of the paper jam on the touch panel display, and remove it. The Document Insertion Unit-P1 is optional. Optional Equipment
|
IMPORTANT
|
|
Part of the Document Insertion Unit-P1 may interfere with the finisher when clearing jams. Lift up the document insertion unit before removing jams from the finisher.
|
Follow the procedure described in this section to clear the paper jam.
1
Remove the paper that is not jammed from the document insertion unit.
2
Open the top cover.
3

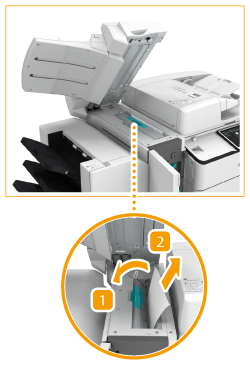

Remove the jammed paper from the top cover.
 |
 |
Remove the jammed paper.
|
 |
Close the top cover.
|
4
Open the front cover and the document insertion unit.
 |
|
Open the front cover.
|
|
|
Open the document insertion unit.
|
5
Remove the jammed paper from the delivery unit.
 |
|
Open the delivery unit.
|
|
|
Remove the jammed paper.
|
|
 |
Close the delivery unit.
|
6
Close the document insertion unit and the front cover.
7
Follow the instructions on the touch panel display.
Resume the procedure that was interrupted.
Follow the procedure described in this section to clear the paper jam.
1
Open the front cover.
2
Open the lower delivery guide.
3
Remove the jammed paper.
 |
|
Remove the jammed paper.
|
|
|
Close the lower delivery guide.
|
4
Close the front cover.
5
Follow the instructions on the touch panel display.
Resume the procedure that was interrupted.
