0WR8-01Y
This section describes the Main Menu, which is the start screen for the functions, and the Basic Features screen, which is displayed when using functions. Also, this section describes the screens for configuring general machine settings, screens that show the status of operations and the machine, operation guide messages, and error messages.
|
NOTE
|
 indicates that data on the hard disk is encrypted. Managing the Hard Disk Securely |
When you press
, the Main Menu is displayed, and a list of function buttons is shown. The Main Menu displays a list of function buttons. You can change the functions for these buttons or rearrange their positions so that you can easily choose frequently used functions or hide functions not used often. Customizing the Main Menu
, the Main Menu is displayed, and a list of function buttons is shown. The Main Menu displays a list of function buttons. You can change the functions for these buttons or rearrange their positions so that you can easily choose frequently used functions or hide functions not used often. Customizing the Main Menu
ShortcutYou can place shortcuts for frequently used function buttons. Creating a Shortcut for a Frequently Used Function
Function button listButtons which call up the machine's basic functions are listed here. If there are some buttons that do not fit on a screen, press
and
located in the lower section of the screen to switch the display. Buttons shown on the screen may differ depending on the options installed.
and located in the lower section of the screen to switch the display. Buttons shown on the screen may differ depending on the options installed.Basic Features Screen of Each Function
Press the function buttons on the <Main Menu> screen to display the Basic Features screen where you can access basic functions such as copying, faxing and scanning. Though the display and setting items on the Basic Features screen differ depending on functions, you can change the settings to suit your needs. Customizing the Basic Features Screen
Example: Copy Basic Features screen
Items displayed differ depending on functions.
<Settings/Registration> Screen
Press
to display the <Settings/Registration> screen. Press this key first to make changes for each setting, such as paper settings, display settings, and network settings. On this screen, you can also register destinations, such as e-mail addresses and fax numbers.
to display the <Settings/Registration> screen. Press this key first to make changes for each setting, such as paper settings, display settings, and network settings. On this screen, you can also register destinations, such as e-mail addresses and fax numbers.
Current menu levelYou can check which level is being displayed for the entire setting menu.
Setting item listSetting items that belong to the current menu level are displayed in a list.
NOTE:
When there is no menu under the lower level, the setting screen is displayed.
<Status Monitor/Cancel> Screen
When you press
, the <Status Monitor/Cancel> screen is displayed. On this screen, you can check the printing status and transmission status, as well as the remaining amount of toner and memory level.
, the <Status Monitor/Cancel> screen is displayed. On this screen, you can check the printing status and transmission status, as well as the remaining amount of toner and memory level.
Status and logs of copy/print/transmission/saved documentsThe current status or log of the selected item is displayed. You can cancel copying, printing, and fax transmission on this screen.
ConsumablesYou can check the status of the machine, such as the amount of toner or paper remaining and memory levels.
Operation Guide/Message
Operation guides and messages may appear on some screens. Use them for tips on how to proceed with operations.
Operation guideA guide that can be used as a reference for operation is displayed.
Message/IconA message is displayed when paper runs out or the toner level is low (When an Error Message Appears). Depending on the status and setting, the following icons are displayed.
|
|
 |
USB memory device is connected Connecting a USB Memory Device
|
 |
Replacement of toner is necessary Replacing the Toner Cartridge
|
|
 |
<Switch Language/Keyboard> button Showing the <Switch Language/Keyboard> Button on the Touch Panel Display
|
Error Message
In some cases when an error occurs, instructions on how to respond to the error are displayed. Follow the on-screen instructions to solve the problem. When an Error Message Appears

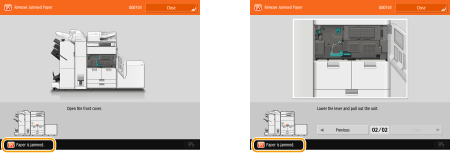

Example: When a paper jam occurs
Example: When a paper jam occurs
|
TIPS
|
|

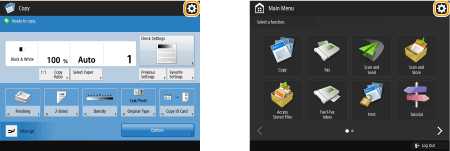

Press
 displayed on the Main Menu and the Basic Features screen to customize the screen such as rearranging buttons or creating a shortcut key. Only an Administrator can perform this operation. Customizing the Touch Panel Display You can change settings regarding the screen display, such as which screen appears immediately after turning ON the machine, and whether the message appears for remaining paper and toner. <Display Settings>
You can set the screen to be displayed when a certain amount of time has passed without operation. <Timer/Energy Settings>
 <Function After Auto Reset> |
