This mode enables you to automatically reduce two, four, or eight originals, as well as two-sided originals or the facing pages of a book, to fit onto one side or both sides of a selected record size.
|
IMPORTANT
|
|
This mode is only available for storing files in the Mail Box.
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
Originals scanned in the Image Combination mode must all be the same size. You cannot use the Image Combination mode with the Different Size Originals mode.
You can change or specify the 2-Sided Original mode before scanning the next batch of originals (i.e., between batches).
|
|
NOTE
|
|
The reduction ratio is automatically set so that the originals fit onto the selected record size.
|
This setting reduces two 1-sided originals or one 2-sided original to fit onto one side or both sides of one sheet of paper.
This setting reduces four 1-sided or two 2-sided originals to fit onto one side or both sides of one sheet of paper.
This setting reduces eight 1-sided or four 2-sided originals to fit onto one side or both sides of one sheet of paper.
1.
Select the desired Mail Box.
2.
Place your originals → press [Scan] → [Options] → [N on 1].
3.

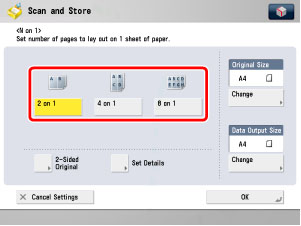

Select the number of pages you want to print on one page.
If you want to specify the image order, press [Set Details] → select the image order → press [OK].
If you do not change the image order by pressing [Set Details], the images are printed as follows:
|
2 on 1:
|
Left → Right
|
|
4 on 1 and 8 on 1:
|
Upper Left → Upper Right → Lower Left → Lower Right
|
4.
Press [Change] for the original size.
5.
Select the desired original size → press [OK].
|
NOTE
|
|
To select an inch paper size, press [Inch-Size].
[2-Sided Original] cannot be selected if A6R is the selected original size.
|
If the original is two-sided, press [2-Sided Original] → select the type of two-sided original → press [OK].
|
[Book Type]:
|
The front and back sides of the original have the same top-bottom orientation.
|
|
[Calendar Type]:
|
The front and back sides of the original have opposite top-bottom orientations.
|
6.
Press [Change] for the data output size.
7.
Select the desired record size → press [OK].
|
NOTE
|
|
To select an inch paper size, press [Inch-Size].
The machine automatically selects the scan ratio depending on the selected record size .
If you set the Image N on 1 mode, the Center Shift mode is also automatically set.
|
8.
Press [OK] → [Close].
9.
Press
.
.
