You can scan both sides of a two-sided documents loaded in the feeder separately.
For information on the optional products required to use this function, see "Optional Products Required for Each Function."
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
When you are scanning originals with a horizontal (landscape) orientation, such as A4R and A5R, make sure to place them horizontally in the feeder. If these originals are placed vertically, the back sides of the originals are scanned upside down.
|
|
NOTE
|
|
If you placed your originals on the platen glass, follow the instructions displayed on the screen to scan each side of the originals.
To cancel this setting, press [2-Sided Original] → [Cancel Settings].
As an example, the procedure for scanning an original and storing it in a mail box is explained in this section.
|
1.
Select the desired Mail Box.
2.
Place your originals → press [Scan].
3.

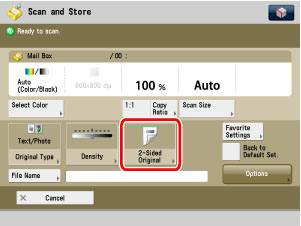

Press [2-Sided Original].
4.

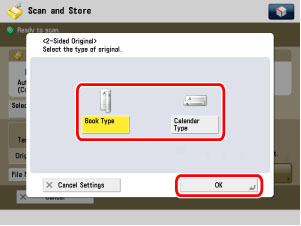

Select the type of original → press [OK].
|
[Book Type]:
|
The front and back sides of the original have the same top-bottom orientation.
|
|
[Calendar Type]:
|
The front and back sides of the original have opposite top-bottom orientations.
|
5.
Press
.
.
