Combinations with options (system configurations) for using the machine as a printer are available as described below.
In this manual, the combinations are each defined with the terms "UFR II Printer," "PCL Printer," "PS Printer," "PDF Direct Print Printer," and "XPS Direct Print Printer."
|
IMPORTANT
|
|
To enable these modes and functions, you must register the licence key with the machine. For information on registering the licence key, see Chapter 9, "Installing the System Options/MEAP Applications," in Getting Started.
|

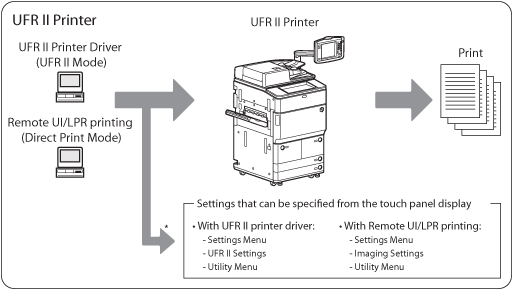

UFR II printing is standard with the imageRUNNER ADVANCE 6075/6075i/6065/6065i/6055/6055i.
|
Machine Model
|
Required Option Kit
|
|
imageRUNNER ADVANCE 6075/6075i/6065/6065i/6055/6055i
|
(UFR II Printer Kit is Standard.)
|

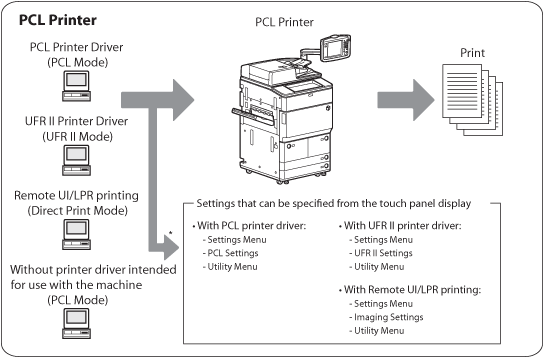

PCL printing is standard with the imageRUNNER ADVANCE 6075i/6065i/6055i. For the imageRUNNER ADVANCE 6075/6065/6055, the PCL Printer Kit must be installed.
|
Machine Model
|
Required Option Kit
|
|
imageRUNNER ADVANCE 6075/6065/6055
|
PCL Printer Kit
|
|
imageRUNNER ADVANCE 6075i/6065i/6055i
|
(PCL Printer Kit is Standard.)
|

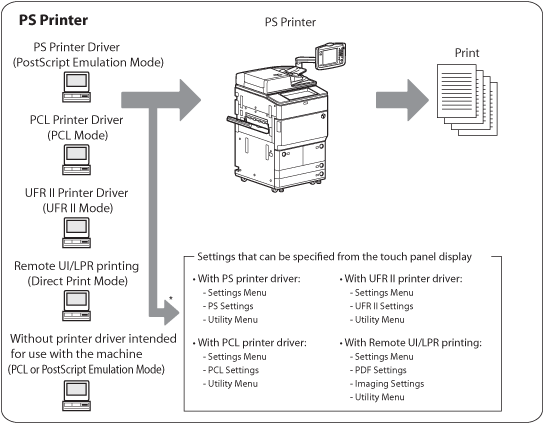

For PS printing, the PS Printer Kit must be installed.
|
Machine Model
|
Required Option Kit
|
|
imageRUNNER ADVANCE 6075/6075i/6065/6065i/6055/6055i
|
PS Printer Kit
|

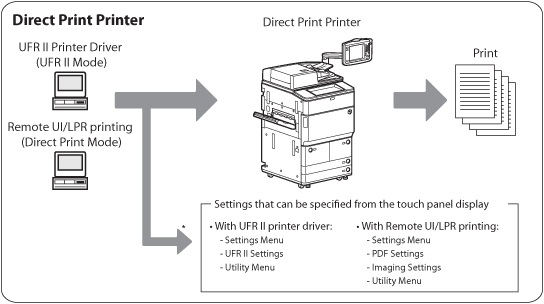

For PDF Direct printing, the Direct Print Kit (for PDF/XPS) must be installed.
|
Machine Model
|
Required Option Kit
|
|
imageRUNNER ADVANCE 6075/6075i/6065/6065i/6055/6055i
|
Direct Print Kit (for PDF/XPS)
|
For XPS Direct printing, the Direct Print Kit (for PDF/XPS) must be installed.
|
Machine Model
|
Required Option Kit
|
|
imageRUNNER ADVANCE 6075/6075i/6065/6065i/6055/6055i
|
Direct Print Kit (for PDF/XPS)
|
This describes differences in the settings that can be specified as a minimum from the touch panel display in each printer type.
|
NOTE
|
|
An asterisk (*) indicates settings which are not specifiable with the printer driver or a Remote UI that can be specified from the touch panel display.
|
