Document Insertion/Folding Unit-H1/Document Insertion Unit-L1 (Optional)

This section describes how to load paper into the document insertion unit of the Document Insertion/Folding Unit or Document Insertion Unit.

Loading Paper

Follow the procedure below to load the paper into the Document Insertion/Folding Unit or Document Insertion Unit.

Adjust the slide guides to fit the paper size.

Load the paper stack into the document insertion unit.

Load the paper face up.

NOTE
Only load paper for use as a cover. You cannot make copies or prints on paper that is loaded in the document insertion unit. You can load A3, A4, or A4R paper into the trays of the Document Insertion/Folding Unit or Document Insertion Unit. A maximum of 100 sheets of paper (80 g/m2) can be loaded in the tray of the document insertion unit.

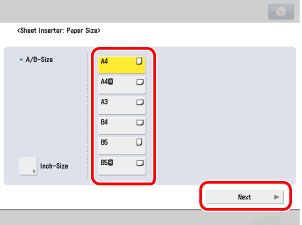

Select the desired paper size → press [Next].

IMPORTANT
Select the same paper size that is loaded in the document insertion unit.

NOTE
To select an inch series paper size, press [Inch-Size].

Select the desired paper type → press [OK].

IMPORTANT
When printing on special types of paper, such as heavy paper, be sure to correctly set the paper type. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty and require a service repair, or the paper could jam.

NOTE
For more information on paper types, see "Available Paper Stock."

Loading Tab Paper

Tab paper can be loaded into the Document Insertion/Folding Unit or Document Insertion Unit.

IMPORTANT
Only A4 Tab Paper can be used.

NOTE
Load the tab paper face down with the tabs to the left side as shown in the illustration below. * Feeding direction You cannot make copies or prints on Tab Paper that is loaded in the Document Insertion/Folding Unit or Document Insertion Unit. You can use the Tab Paper set in Document Insertion/Folding Unit or Document Insertion Unit for Add Cover, Insert Sheets or Job Separator. If you want to insert printed tab paper as a chapter pages, insert a blank paper where the tab paper will be inserted.

NOTE

Load the tab paper face down with the tabs to the left side as shown in the illustration below.

* Feeding direction

You cannot make copies or prints on Tab Paper that is loaded in the Document Insertion/Folding Unit or Document Insertion Unit.

You can use the Tab Paper set in Document Insertion/Folding Unit or Document Insertion Unit for Add Cover, Insert Sheets or Job Separator.

If you want to insert printed tab paper as a chapter pages, insert a blank paper where the tab paper will be inserted.
