Duplex Color Image Reader Unit-C1(Optional)

Replace the stamp cartridge when the stamp is faint or no longer visible.

IMPORTANT
When replacing the stamp cartridge, take care not to allow toner to come into contact with your hands or clothing. If toner gets onto your hands or clothing, wash it off immediately with cold water.

Replacing the Stamp Cartridge

Open the feeder, and open the cover of the scanning area.

1.Open the feeder.

2.Pull the lever above the feeder, and open the cover of the scanning area.

IMPORTANT
Open the cover of the scanning area carefully, as not to scratch the platen glass.

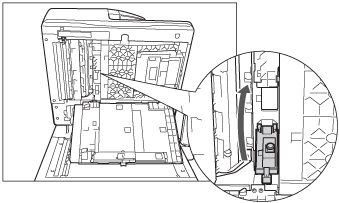

Open the stamp cover.

Remove the old stamp cartridge, and push in the new one until it clicks into place, using the provided tweezers.

IMPORTANT
Insert the stamp cartridge properly, or paper jams may occur.

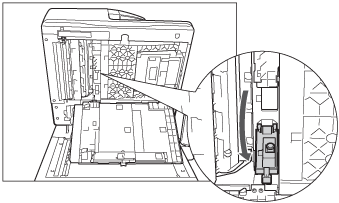

Close the stamp cover.

Close the cover of the scanning area, and the feeder.

1.Close the cover of the scanning area.

2.Close the feeder.

CAUTION
When closing the feeder cover, be careful not to get your fingers caught, as this may result in personal injury. Be aware that the light emitted from the platen glass may be very bright when closing the feeder.
