This section describes the optional products and their functions.
For information on the optional products required to use this function, see "Optional Products Required for Each Function."
|

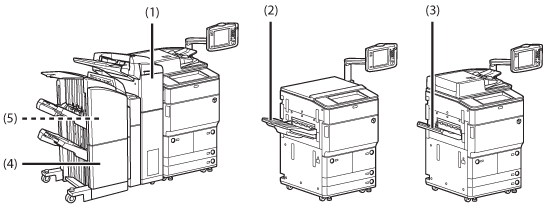

(1)
|
Document Insertion/Folding Unit-H1
If the Document Insertion/Folding Unit is attached to a finisher, you can insert covers into documents or load paper you want to add sheet insertions. In addition, you can also perform C-folding and Z-folding.
|
|
(2)
|
Duplex Color Image Reader Unit-C1
You can scan documents such as books, thick originals, thin originals, and transparencies on the platen glass of the Duplex Color Image Reader Unit. A single original can be sent from documents gathered in the feeder attached to the Duplex Color Image Reader Unit.
|
|
(3)
|
Paper Deck Unit-D1
If the Paper Deck Unit-D1 is attached, it can provide an additional paper source. The Paper Deck Unit-D1 holds up to 3,500 sheets of paper (80 g/m2).
|
|
(4)
|
External 2 Hole Puncher-A1/External 2/4 Hole Puncher-A1/External 4 Hole Puncher-A1
The External 2 Hole Puncher, External 2/4 Hole Puncher, or External 4 Hole Puncher is equipped with the Hole Punch mode. They can be attached only if the Staple Finisher or Booklet Finisher is attached.
|
|
(5)
|
Booklet Finisher-E1
The Booklet Finisher is equipped with the following features: Collate, Group, Offset, and Staple (Corner, Double, and Saddle Stitch).
|
|
(6)
|
Staple Cartridge-D2/Staple Cartridge-D3
The Staple Cartridge-D2 or Staple Cartridge-D3 can be attached to the Booklet Finisher for saddle stitching. |
|
(7)
|
Staple-J1
The Staple-J1 can be attached to the Staple Finisher or Booklet Finisher for stapling (Corner and Double). |
|
(1)
|
Upright Control Panel-A1
Instead of the flat control panel, you can attach the upright control panel.
|
|
(2)
|
Card Reader-C1
The Card Reader enables Department ID Management to be performed through the user of cards.
|
|
(3)
|
Utility Tray
The Utility Tray provides space for placing originals.
|
|
(4)
|
Paper Deck Unit-A1
If the Paper Deck Unit-A1 is attached, it can provide an additional paper source. The Paper Deck Unit-A1 holds up to 3,500 sheets of paper (80 g/m2).
|
|
(1)
|
Document Insertion Unit-L1
If the Document Insertion Unit is attached to a finisher, you can insert covers into documents.
|
|
(2)
|
Shift Tray-E1
The Shift Tray is equipped with the following features: Collate, Group, and Offset.
|
|
(3)
|
Copy Tray-Q1
The Copy Tray is equipped with the following features: Collate, Group, and Rotate 90 degrees.
|
|
(4)
|
Staple Finisher-E1
The Staple Finisher is equipped with the following features: Collate, Group, Offset, and Staple (Corner and Double).
|
|
(5)
|
Staple-J1
The Staple-J1 can be attached to the Staple Finisher or Booklet Finisher for stapling (Corner and Double).
|
