You can use the USB memory by inserting it into the USB port of the machine.
Also, if the Multimedia Reader/Writer is installed, you can use the SD card, Memory Stick, CF card, and Microdrive. For more information, see "Multimedia Reader/Writer ."
|
IMPORTANT
|
|
The corresponding format for the memory media is only FAT32.
Before inserting the memory media, make sure that the memory media is facing the correct direction. If the memory media is inserted incorrectly, the memory media, the machine, and the Multimedia Reader/Writer may be damaged.
|

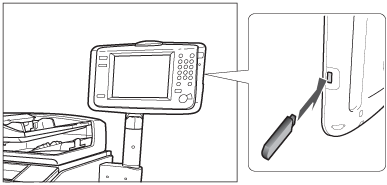

Insert the USB memory into the USB port on the right side of the control panel of the machine.
Control Panel (Flat)
Upright Control Panel
If you want to insert the SD card, Memory Stick, CF card, Microdrive into the Multimedia Reader/Writer:
Insert the SD card and Memory Stick into the SD/MS card slot, and the CF card and Microdrive into the CF card slot.
*1 SD/MD Card Slot
*2 CF Card Slot

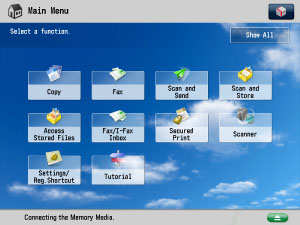

A message indicating that the memory media is connected and the removal button ([
])are displayed on the touch panel display.
])are displayed on the touch panel display.
|
NOTE
|
|
The message and removal button ([
])are displayed under the following condition.[Use MEAP Driver for USB External Device] in [USB Settings] in [External Interface] in Preferences (Settings/Registration) is set to 'Off'. (See "Using the MEAP Driver for USB External Memory Device Connections.")
|
This section describes how to remove the memory media from the machine safely.
|
IMPORTANT
|
|
Make sure you follow the following procedure to remove the memory media from the machine. If the memory media is removed from the machine in a way other than the procedure below, the memory media, the machine, and the Multimedia Reader/Writer may be damaged.
|
1.

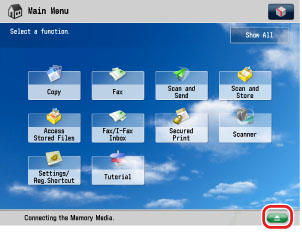

Press [ ].
].
2.

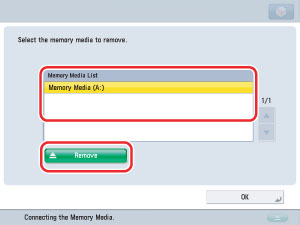

Select the memory media to remove → press [Remove].
3.

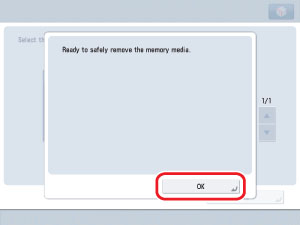

Press [OK].
If the message indicating it is OK to remove the memory media is not displayed, repeat steps 2 and 3.
4.
Remove the memory media from the port.
5.
Press [OK].
